The MipFly One is a groundbreaking Variometro powered by open source, cutting-edge technology, and the latest features.

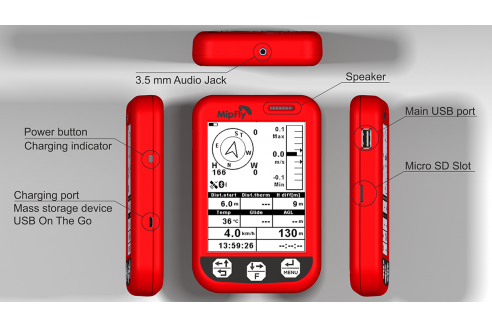

MipFly One variometer with gps-bluetooth-wifi

Name: MipFly One variometer with gps-bluetooth-wifi
Brand: MipFly
SKU: 22042024
Price: 450 EUR
Availability: InStock

Reference 22042024

€450.00

Tax included

MIPFly One is a flight instrument born from the combination of a love of flight and electronics. It was designed with openness and expandability in mind, as an instrument for a wide range of pilots.

The variometer's core platform runs Linux , making further development on the device easy. This feature also allows us, or anyone else who wants to contribute or modify the instrument, to easily add new features.

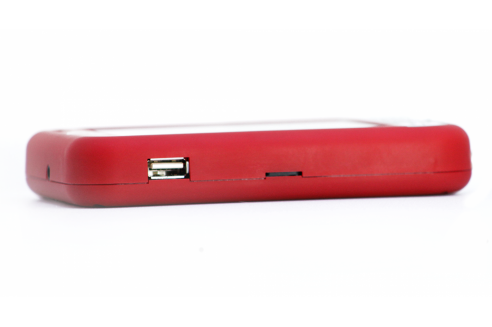

FULL SIZE USB ports add a wealth of hardware expansion possibilities to the device, pre-flight or in-flight, without the need for a fragile microUSB port.

The readability of the device's 4.4" display is incredible . We spared no expense on this part of the instrument. No compromise. You can hold the instrument with the sun reflecting directly into your eyes and still be able to read on it. Also, the display's refresh rate is very good at 20 fps along with a wide range of working temperatures.

The device's sensor system consists of two separate submodules. One is the GPS system, which consists of a high-precision Ublox M8N receiver commonly used in drones due to its performance, along with a highly sensitive patch antenna. The second submodule is the real-time pressure and accelerometer sensor fusion system, which gives the MipFly One an incredibly fast response.

Main features:

High contrast monochrome LCD display
Keyboard with clearly detectable keys and easy to use with gloves
Reliable and proven high-sensitivity instantaneous vario with integrated IMU (Accelerometer and Magnetometer)
Easy firmware updates
Connect to PC via USB
IGC file for each flight
Wind direction and speed
Glide
Airspace warnings
Height above ground
Waypoints
Current glide ratio
Current flight direction
Customizable variable tone frequency, sensitivity, audio mode, rising tone
Instant and average rise graphic indicator
Maps
Live tracking
Live weather reports
Customizable interface using our online builder
Shared flight (Live tracking)
Bluetooth and wireless interface
AGL (Height above ground)
Can be used as a power bank
Thermal Assistant

All features

Screen size	4.4 inches, 89.6 × 67.2 mm (actual display area).
Screen resolution	320x 240.
Battery capacity (lithium ion)	7200 mAh.

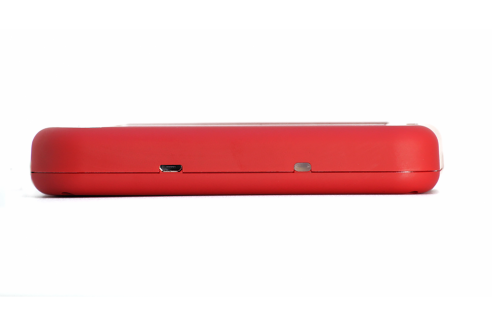

Battery charging	Micro USB port (cable not included) with OTG functionality, the device can be charged as a mass storage device or you can enable serial communication with it.
Loading time	~ 8 hours.
Autonomy	~ 16 hours.
Weight	268 gr.
Size	140 x 90 x 24 mm (length x width x thickness).
GPS sensitivity	Industry-leading navigation sensitivity of –167 dBm.
GPS GNSS	Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou).
Processor	Alwinner A20 dual-core microprocessor running at ~1 GHz/core.
Operating system	Linux.
Real-time coprocessor	Cortex-M3 with a CPU speed of 72 MHz.
Barometer	Dual barometer system with a high-resolution module measuring only 10 cm.
Inertial measurement unit	The 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer provide everything needed to create an attitude and heading reference system (AHRS).

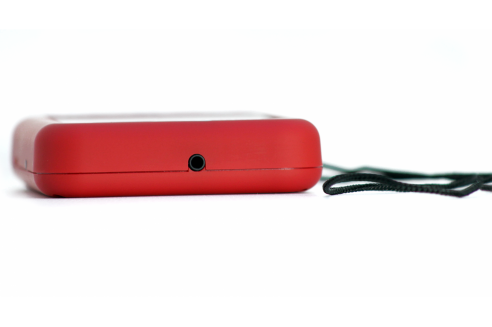

Audio	A 2W, 8-ohm speaker and 3.5mm audio jack are provided, with true sine wave audio available.
Expdability	2 full-size USB ports (1 external and 1 internal).
Extras
USB to Bluetooth adapter	USB to Bluetooth 4.0 adapter, preset to the full-size internal USB port
Bluetooth remote control	A small handheld remote control, with an approximate battery life of 20 hours. (Optional)
Warranty
Warranty	2 years.
